Make sure all terminal connections are tightened properly, and snap the ACR cover in place when finished. Appropriate 12/24V LEDs include Blue Sea Systems PNs 8033 (amber), 8171 (red), or 8172 (green). Connect the accessory switch panel and the terminal marked “GROUND” on the ACR to the common negative bus bar.

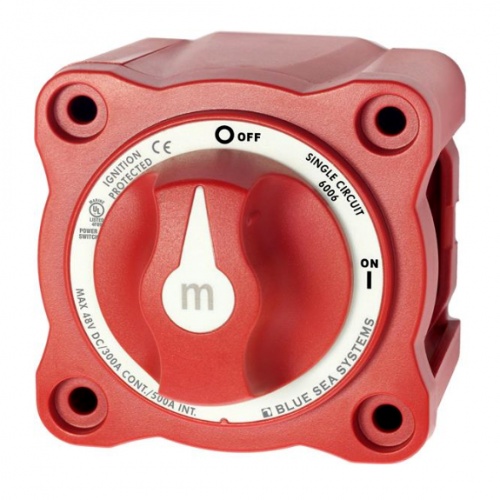

Can be use on 12, 24 or 48 Volt system as long as switch current rating is not exceeded. Connect the engine’s negative cable directly to the negative terminal of the starting battery. 300A Battery isolator switch, 900A for 30 secs, up to 48 Volt, M10 connection. A battery switch is required by ABYC in every boat with a battery over 800 Cold Cranking Amps (CCA). Connect the negative terminals of both batteries to a common bus bar. Battery Switches - Blue Sea Systems Battery management is central to safe operation of a boat or vehicle. 2) This Tiger Exped switch will also be totally fine at nominal 48V. The Blue Sea Systems ACR’s (automatic charging. So I chatted with a very knowledgable guy on the Tiger Exped stand at the Allrad Expo earlier this year, and he said two things: 1) The Blue-Sea switch will be totally fine at nominal 48V voltages, theyre being overly conservative.
#Blue sea battery isolator install
Install fuses in the positive connections to the ACR and the switch panel. Unlike a diode type isolator, which causes an approximate 0.6V volt drop to the batteries being charged, the combiner/VSR’s were simple voltage triggered paralleling switches and both batteries could be charged without human intervention or the voltage drop associated with diode type isolators. Also, connect the engine and accessories switch panel to output studs 2 and 1, respectively, on the battery switch. This Add-A-Battery 120 amp Kit includes an ignition protected dual circuit Blue Seas e-Series battery switch and a 12/24v Automatic Charging Relay (ACR). Similarly, connect the positive terminal from the house battery to ACR stud B and switch input stud 1. Use stainless steel fasteners to install them securely, and check behind bulkheads for wires, hoses and tank before drilling any holes.įollow the instruction to connect the positive terminal from the starting battery to stud A on the ACR and, with a second wire, the input stud 2 on the battery switch. The locations should be dry and well ventilated. Blue Sea 7620 Ml-Series Automatic Charging Relay (Magnetic Latch) 12vdc.
Victron Galvanic Isolator Vdi-32a 32a Max Waterproof (Potted) 249.05.
#Blue sea battery isolator plus
Blue Sea e-series Dual Circuit Plus Battery Switch and SI-ACR Courtesy Blue Sea SystemsĬhose spots close to the batteries to attach both of the main components – a Blue Sea e-series Dual Circuit Plus Battery Switch and SI-ACR. Kit includes (1) Blue Sea 5511e Dual Circuit battery switch and (1) Blue Sea 7610 SI ACR automatic charging relay. Promariner Battery Isolator - 2 Alternator - 3 Battery - 130 Amp.
